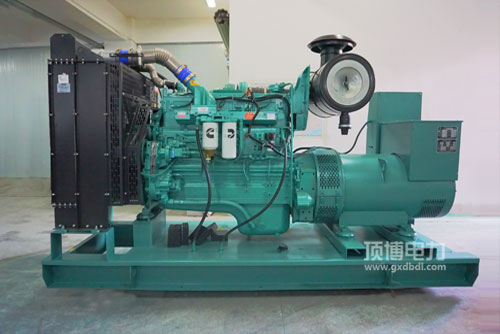

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用热车机汽柴油第三产业性好: 先进集体的汽柴油管控体统，独具特色的STC、ESTC 级别划分管控体统，特殊化设计的概念的火塞顶面燃燒室，进行高压喷洒汽柴油，彻底的吸雾，燃燒彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用汽车发驱动力瞬态安全性能出众: 完美无瑕的汽车发驱动力整体布局来设计，结合康明斯个性的EFC整体，有效控制的精密程度高，没有响应准确时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用汽车发因素升效率高: 产品 规划紧密.性能设计科学，执行平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50够满足国非路途第一时期及亚洲Tier2. Tier 3减排相关法律法规条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可获得性好， 启思想作业及维修保養保養体验，低成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力比率 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观尺寸规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的特别：容积小， 解压缩比低， 格栅价格气体烧水，不易发动，手机汽车导航外接电源的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机尺寸	最常见马力(kW)Prime Power	自备电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
